20km Long Range Digital Wireless Video Transmitter And Receiver With Low Latency

  • 1
  • 2
  • 3

Brand Name : Ding Shen

Model Number : DS-HDT20WG

Place of Origin : China

MOQ : 1 Set

Price : negotiation

Payment Terms : T/T

Supply Ability : 3,000pcs per month

Delivery Time : 3-7 works days

Packaging Details : International packing

Product Name : Digital Wireless Video Transmitter And Receiver

Modulation : COFDM

Frequency : 300MHz~900MHz Or 1.2Ghz, 2.4Ghz

RF Power : 5-20 Watt

DC Input : DC12V-DC14V

Video Compression : H.265

Contact Now

High Light:

20km Wireless Video Transmitter And Receiver

,

DC14V COFDM Video Transmitter

,

Low Latency COFDM Video Transmitter

20km Long Range Digital Wireless Video Transmitter and Receiver with Low Latency

Real-time mbile wireless av transmitter Description:

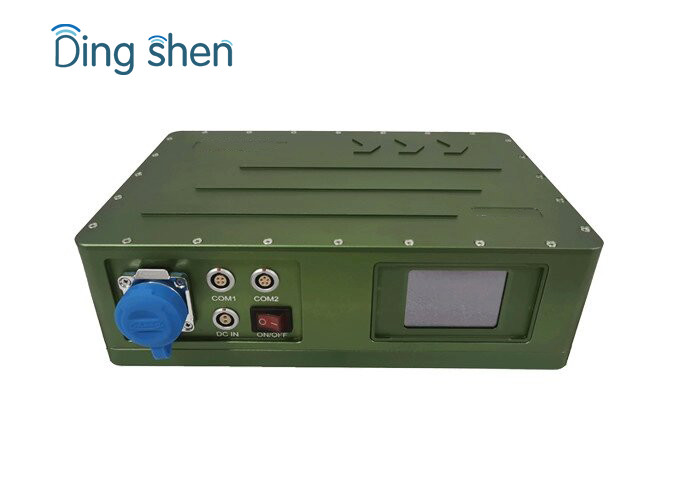

DS-HDT20WG is a powerful COFDM wireless video audio transmitter designed from Ding Shen Technology, it's adopts the latest COFDM modulation and narrow bandwidth at its core, which is enable to transmit 1080P/I full HD video quality in fast moving and NLOS (non-line-of-sight) environment.

With 20 watt high RF power, DS-HDT20WG can easily to transmit 10~15km NLOS long distance wireless video and 1920*1080P high definition broadcast quality image in urban area; and 100km LOS from air to ground.

The frequency, RF power, video input, and the housing of the KP-HDT20WG cofdm video transmitter all can be designed and customized based on user's application and requirement.

Parameters:

Modulation CODFM
DC input DC12V-DC14V
Working Current ≤4.7A@DC12V
Constellation QPSK,16QAM,64QAM (optional)
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Carrier 2K
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Frequency 300MHz-900MHz; 1GHz-2.7GHz customized (50Mhz per interval as a frequency band)
RF power output 5-20W (adjustable)
Encryption AES128 bits user-defined password

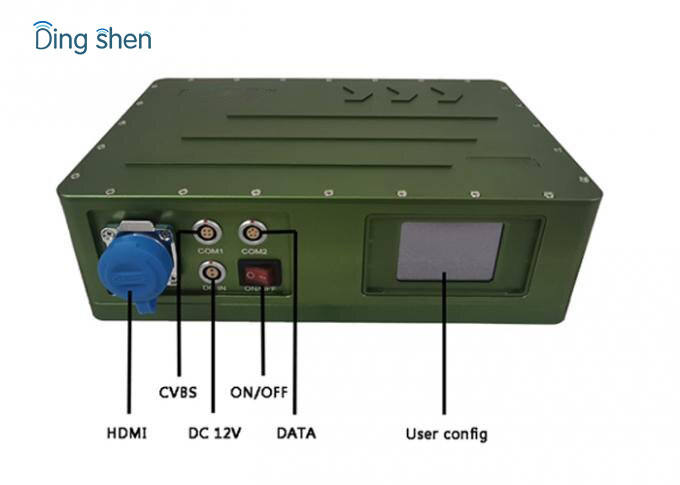

A/V interface RCA

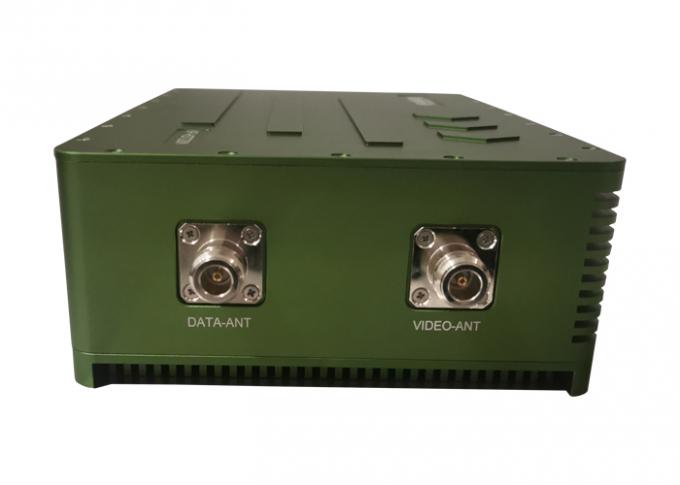

RF interface N type
Flatness ≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic 1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER <2.0E-4
Video Compression H.265/H.264/MPEG-4
Resolution 1080P/720P
Video Rate 6Mbps
Work environment -30~70°
Dimension 220*140*80MM
Weight 2.3kg

Feature:

  • COFDM modulation, Stable transmission

  • H.265/H.264 video compression, DVD video quality

  • Strong casing with built-in two cooling fans

  • Mobile and NLOS video audio transmission

  • Great security by encryption of AES 128/256 bits

  • Low system latency

  • Modular design, compact structure, OEM design

  • Can be customized to add additional features, such as HDM-I/HD-SDI, data port, Ehernet and etc..
