10W COFDM Wireless AV Transmitter Tactical Digital Video Sender For Military

Product Categories
Shenzhen dingshen Industrial Co., Ltd
Contact Now

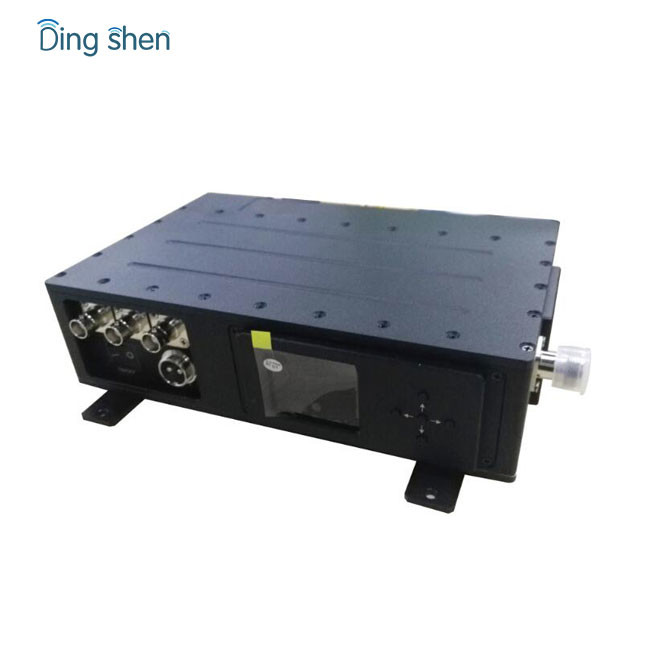

10W COFDM Wireless AV Transmitter Tactical Digital Video Sender For Military

  • 1
  • 2
  • 3

Brand Name : Ding Shen

Model Number : DS-HD20

Place of Origin : China

MOQ : 1 Set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 1,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Modulation : COFDM

Video encoding : H.264/H.265

Distance : 5~10km NLOS

RF Power : 10W

Frequency : 300-900Mhz Or Other Band Customized

Encryption : AES128/256bits

Contact Now

10W Long Range COFDM Wireless AV Transmitter Tactical Digital Video Sender for Military

Long range video transmitter introduction:

DS-HD20 is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264/H.265 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with two cooling fans. Be safety with AES128/256bits. Works well in fast-moving transmission.

Features:

  • COFDM modulation, Stable transmission
  • H.264/H.265 video compression, DVD video quality
  • Military aluminum housing ,Strong casing with built-in two cooling fans
  • Mobile and NLOS(Non line-of-sight) transmission
  • Great security by encryption of AES 128 bits
  • Low system latency
  • Modular design, compact structure, OEM design
  • Several wavebands available: VHF/L/ S
  • Can be customized to add additional features, such like HD port, data port, Ehernet and etc..


Specifications:

Modulation CODFM
DC input DC12V-DC14V
Working Current ≤4.7A@DC12V
Constellation QPSK,16QAM,64QAM (optional)
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Carrier 2K
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Frequency 138-4400MHz (available)
RF power output 5~10W adjustable
A/V interface SDI/H-D-M-I; BNC
RF interface N type
Flatness ≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic 1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER <2.0E-4
Video Compression H.264/H.265
Resolution 1980*1080P
Video Rate 6Mbps
Work environment -30~70°

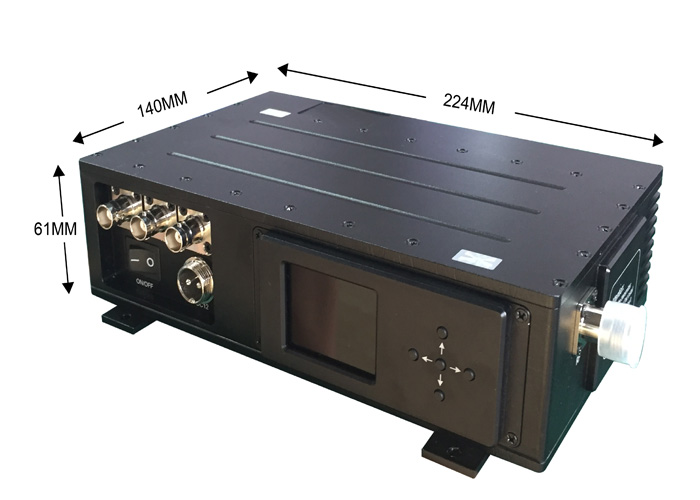

Dimension 220*140*60mm
Weight 2.3kg

10W COFDM Wireless AV Transmitter Tactical Digital Video Sender For Military

10W COFDM Wireless AV Transmitter Tactical Digital Video Sender For Military10W COFDM Wireless AV Transmitter Tactical Digital Video Sender For Military

FULL HD COFDM Wireless Transmitter Application:

This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.

10W COFDM Wireless AV Transmitter Tactical Digital Video Sender For Military
