Vehicle Mounted COFDM Video Transmitter 20W Output Power Modular Design

Brand Name : Ding Shen

Model Number : DS-HDT5000

Place of Origin : Guang Dong China

MOQ : 1set

Price : >=1 Sets $4900

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 5-10 working days

Certification : CE

Modulation : COFDM

Frequency : 1.4GHz~2.7GHz

Output power : 10W-20W

Encryption : AES 128 bits

Weight : 1362g

Contact Now

COFDM wireless video transmitter 70km to100km long range ground station for UAV drone

NLOS Long Range 70km to100km COFDM Long Range Wireless Video Transmitter for unmanned aerial vehicle transmits over 100km LOS and 1km to 3km nlos long range audio, video and images.

Long Range Wireless Video Transmitter for unmanned aerial vehicle is with COFDM modulation, H.264 mpeg-4video compression and AES encryption .

HD-MI or HD SDI Video input can be added, so that it can be made as a high definition HD-MI or HD SDI wireless video transmitter.

COFDM wireless audio video transmitter is used for long range audio, video transmission, live broadcast and drone video shooting / recording.

COFDM wireless video transmitter performs well in LOS / NLOS long range wireless transmission

Introduction:

This is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.265 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with three cooling fans. Be safety with AES128/256bits. Work well in fast-moving transmission and obstruction environment.

Specifications:

Modulation	CODFM
DC input	DC12V-DC14V
Working Current	≤4.7A@DC12V
Constellation	QPSK,16QAM,64QAM (optional)
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Carrier	2K
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Frequency	138-4400MHz (available)
RF power output	10-20W
A/V interface	RCA
RF interface	N type
Flatness	≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic	1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER	<2.0E-4
Video Compression	H.265/H.264/MPEG-4
Resolution	1080P/720P
Video Rate	6Mbps
Work environment	-30~70°
Dimension	22014080MM
Weight	2.3kg

Vehicle Mounted COFDM Video Transmitter 20W Output Power Modular Design

Product Tags:

Vehicle Mounted COFDM Video Transmitter

COFDM Video Transmitter 20W

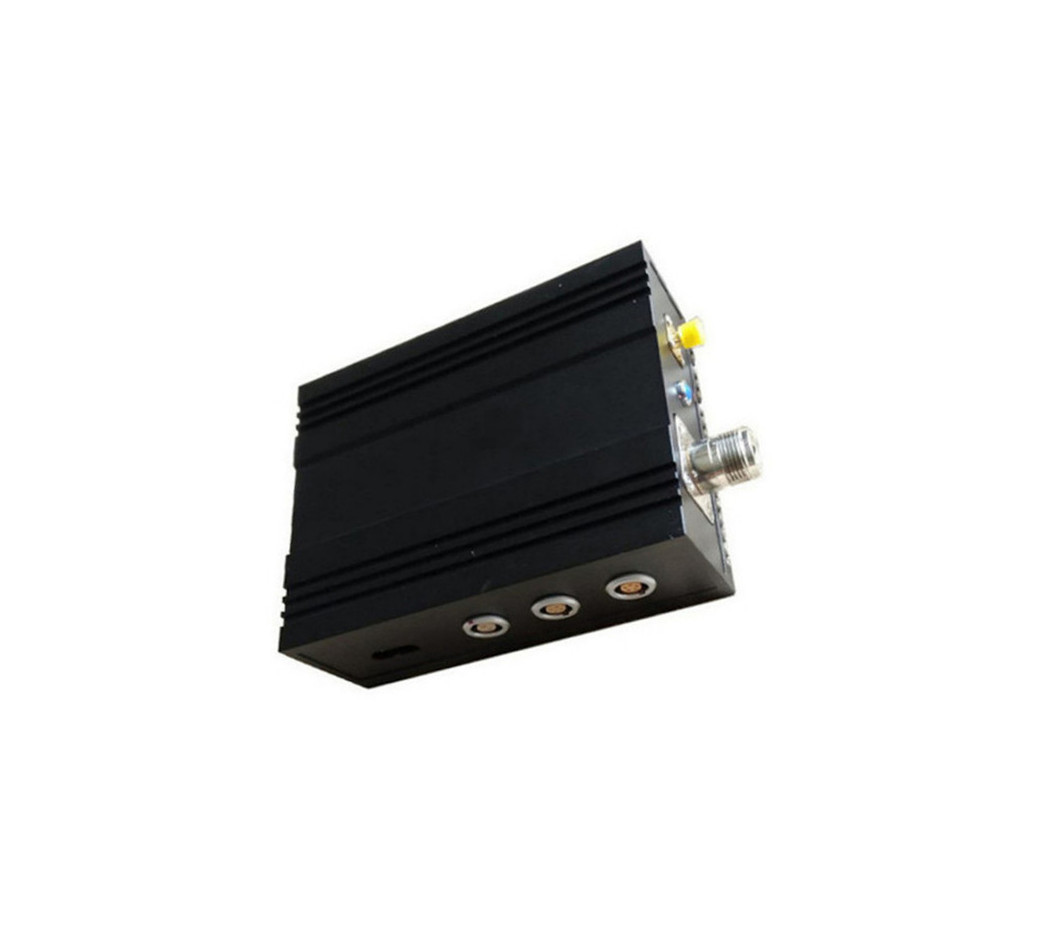

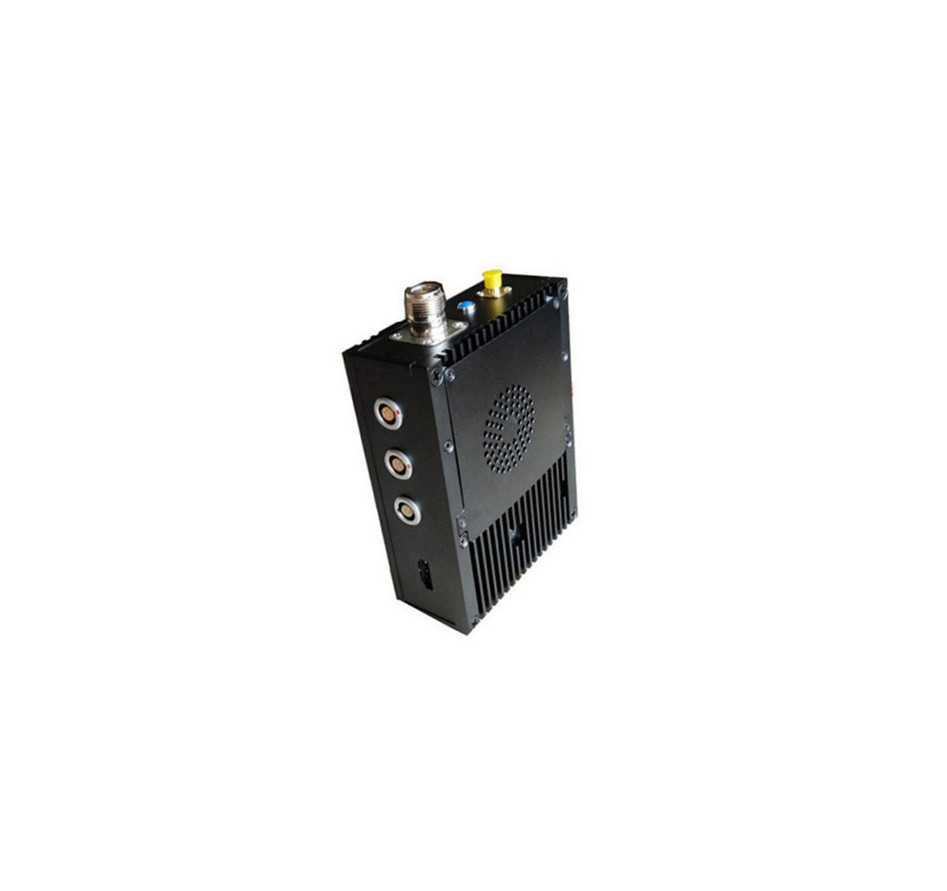

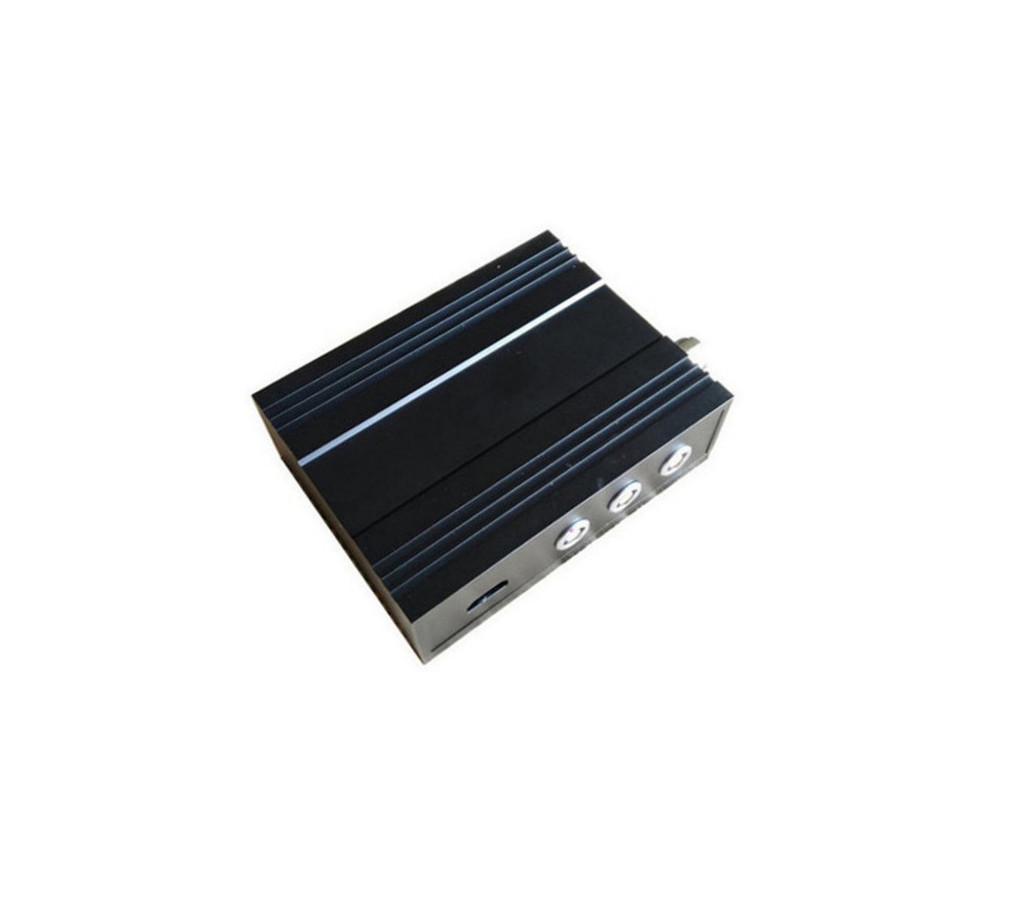

Vehicle Mounted COFDM Video Transmitter 20W Output Power Modular Design Images
