Full Duplex Data Transceiver IP Radio Modem Tactical Communication System

Brand Name : Ding Shen

Model Number : DS-720

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000PCS per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Output Power : 5W

Modulation : COFDM 2K

Radio Frequency : 300MHz～860MHz/ 1.2G~2.5GHZ(option)

RF Interface : N Type

Weight : 2.5KG

Encryption : 128 Bit AES

Date Rate : 2x30Mbit/s_RJ45 115200bps_RS232

Channel Bandwidth : 1/2/4/8MHz

Dimensions : 260mm*180mm*35mm

Contact Now

Full duplex data transceiver IP radio modem tactical radio communication system

Product introduction

DS-720(260mm*180mm*35mm) FDD COFDM, using COFDM multi carrier modulation and demodulation technology supporting non sight distance (NLOS) transmission, supports narrow band (1MHz), low latency, high sensitivity long distance transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design, setting network, modulation and demodulation, full frequency RF output in one. It can help you to complete the design of long distance wireless link more conveniently and quickly, and provide high definition digital broadcasting, security system, public security, armed police, fire-fighting and other fields.

Application

It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.

Key features

  • Using non-standard COFDM modulation and demodulation technology
  • support non line of sight (NLOS) and high-speed mobile transmission.
  • low latency /End to end transmission large data
  • Transparent network / serial data transmission
  • Military level non-standard 128 bit dynamic AES encryption
  • Support full band / ultra narrow band / multi bandwidth modulation (1M/2M/4M/8/).
  • Integrated design, small volume, low power consumption
  • Provide high definition LCD control panel, make the user interface simple and efficiently

Technical characteristics

Model DS-720
Working voltage DC 6~17V
Working current 12V_2.5A
TX output frequency

300MHz～860MHz/

1.2G~2.5GHZ(option)

Stepping 1MHz
RX input frequency

300MHz～860MHz/

1.2G~2.5GHZ(option)

Stepping 1MHz
Channel bandwidth 1/2/4/8MHz
Output Power

27~37dbm(can customized),

Step 1 dBm
Encryption and decryption 128bit AES(Dynamic adjustable key)
Modulation and demodulation COFDM 2K
Data Rate 2x30Mbit/s_RJ45 115200bps_RS232
RF interface N type
Data port M12 aeronautical joint
Dimensions 260mm*180mm*35mm
Weight 2.5kg

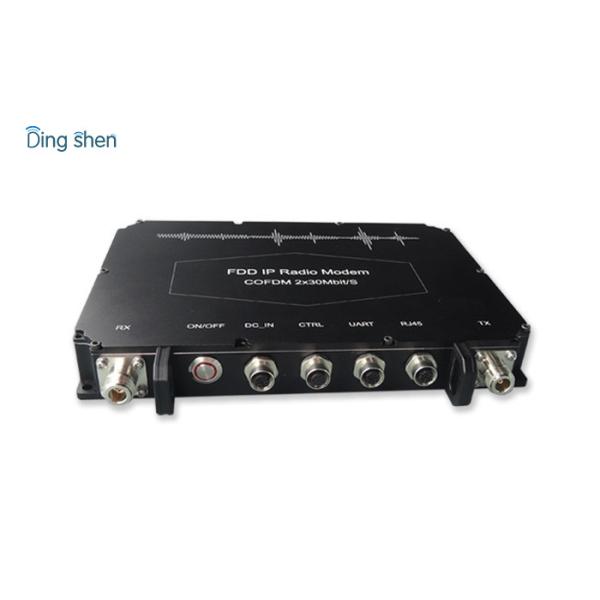

Full Duplex Data Transceiver IP Radio Modem Tactical Communication SystemFull Duplex Data Transceiver IP Radio Modem Tactical Communication System
